Technical Data

Macrolux HR is available on the extensive range of Macrolux products including twinwall, triplewall and the new multiwall and "M" wall Series.

RESISTANCE TO BREAKAGE
Although light in weight all Macrolux polycarbonate sheet is approximately 200 times stronger than glass and virtually unbreakable when subjected to heavy storms, hailstones or ice and snow.

RESISTANCE TO WEATHERING
Macrolux HR has a UV absorber coextruded onto the outer surface of the sheet. This forms a barrier against UV radiation, and ensures exceptional resistance to aging without affecting the sheet's mechanical properties or impact strength.

EXCELLENT FIRE PERFORMANCE
Macrolux HR is classified as self-extinguishing, does not emit poisonous toxic gasses and complies with most standards.

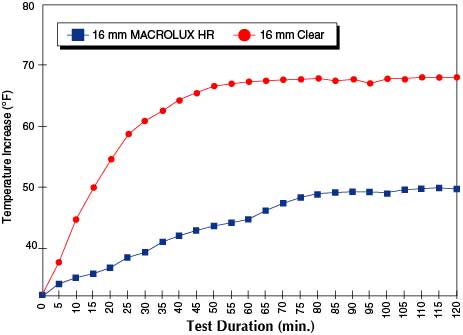

MACROLUX HR CURVE OF EFFICIENCY



TECHNICAL SPECIFICATIONS
16mm triple wall sheet  LIGHT TRANSMISSION  TSET REDUCTION (%)
Macrolux
Standard Clear		 75% 0
Macrolux HR
 50% 35%

TSET = Total Solar Energy Transmission tested on 16mm triple wall sheet

Available widths: 47-1/4", 82-5/8"
Weight, lb./sq.ft.: .55
Shading Coefficient: 0.38
U-Value: .40
R-Value: 2.5
